Truoba 821

1990 sq/ft     3 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

How Much Will It Cost To Build?

Get Cost To Build Report

How Much Will It Cost To Build?

Get Cost To Build Report

Truoba 821

1990 sq/ft     3 Bed    2 Bath

House plan design
Customize This House Plan

House Construction Drawings

$

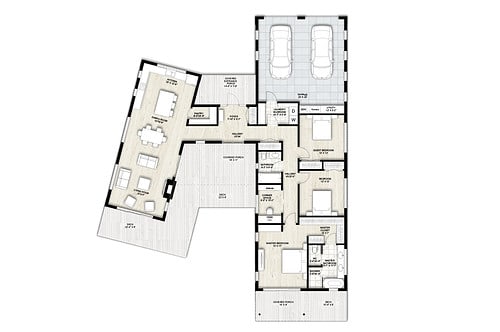

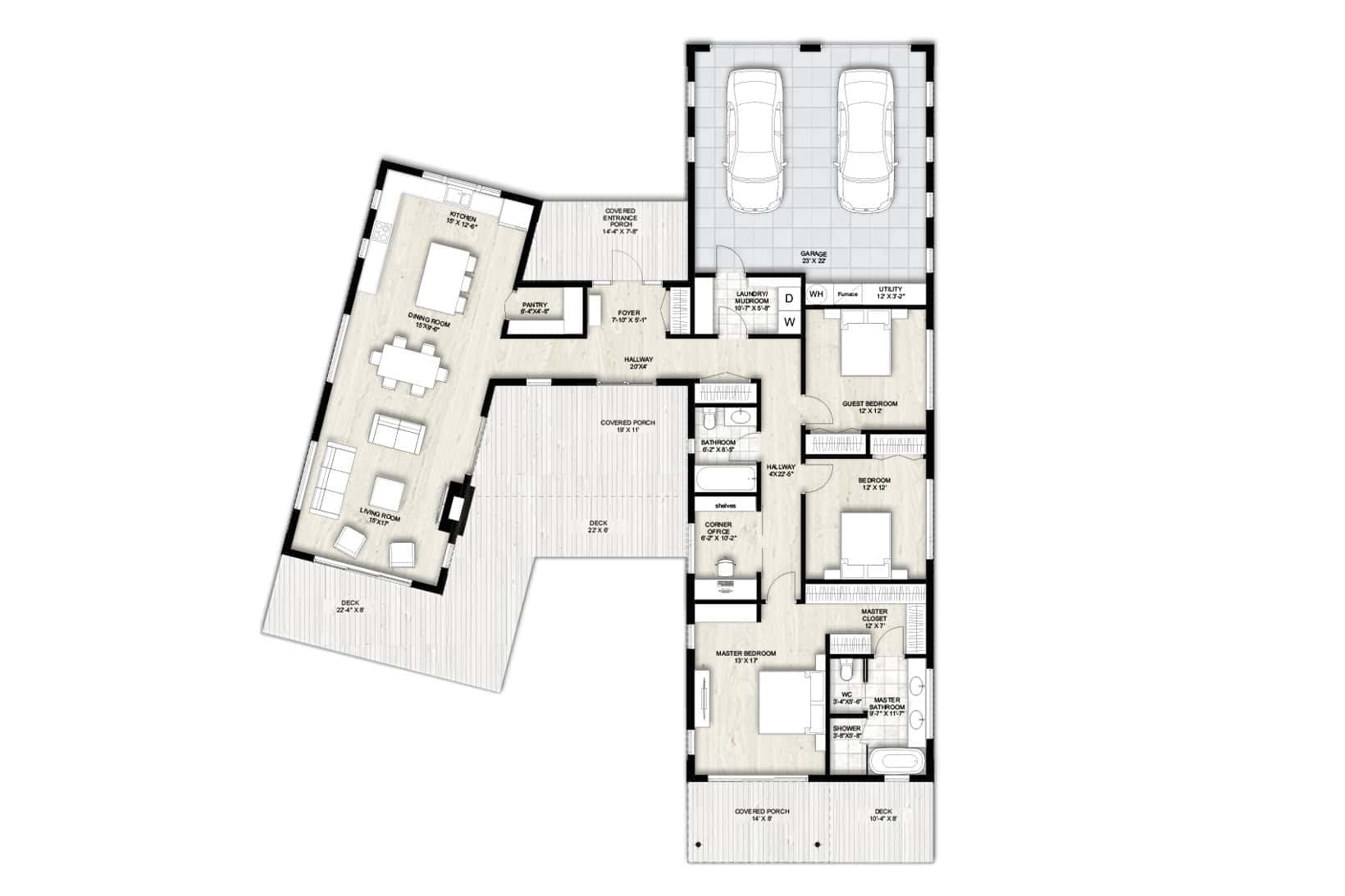

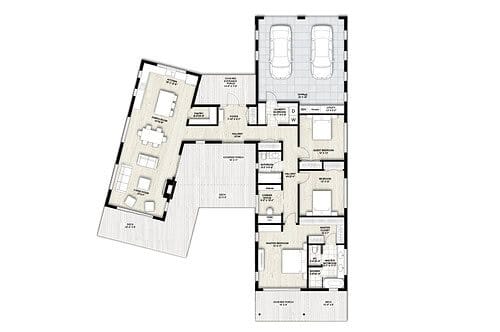

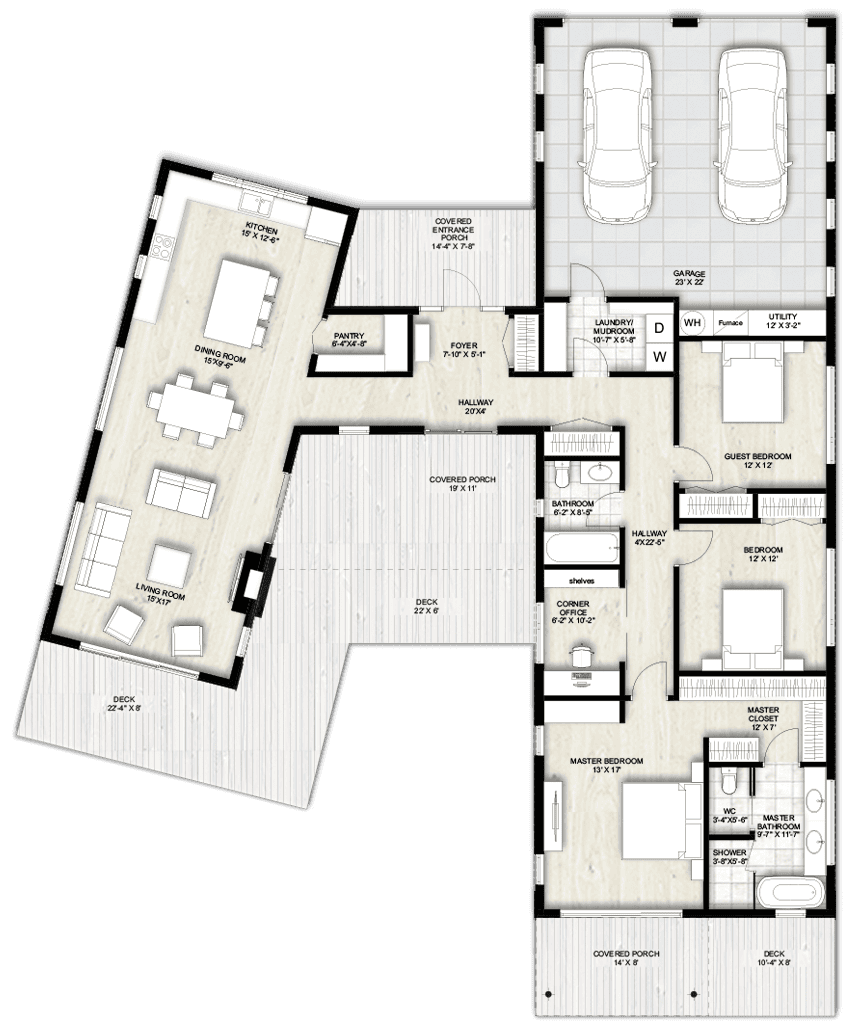

Floor Plan

1990 sq/ft

House Area

580 sq/ft

Garage Area

64′-7″ X 73′-2″

Dimensions
Customize This Plan

Check how floor plan sits on your plot for FREE

  • Open floor plan
  • Living area linked to the porch
  • Main floor master bedroom
  • Walk-in closet
  • Study Room
  • Pantry
  • Wrap around porch
  • Covered front porch
  • Covered rear porch

Area

House area: 1990 sq. ft.

Garage area: 580 sq. ft.



Dimension

Width: 64′-7″

Depth: 73′-2″

Height: 17′-7″



Exterior Wall

Framing: 2″x6″ stud wall

Wall finish: Wood and Stone

Possible different wall finishes: Vinyl, stucco, stone, fiber cement, etc.

Insulation: 6″ (applicable for additional insulation)

Foundation

Type: Slab and crawl. Additionally, choose the basement foundation

Insulation: 8″-10″ (applicable for additional insulation)



Roof

Primary roof pitch: 7/12 (30o)

Secondary roof pitch: 9/12 (37o) and 3/12 (14o)

Framing: Trusses

Insulation: 12″ (applicable for additional insulation)



House Interior

Ceiling height: 9′-6″

Main living area ceiling height: from 10′-5″ to 16′

Balanced Living

Family Space

This contemporary house plan reflects the needs of modern living by giving you a diverse inside layout. House plans like these are divided into several different zones, creating designated spaces for all events and family members.

Room for Life

The right house wing accommodates a main living area and a dining room with a kitchen conveniently located by the rear covered porch. The master bedroom with a large bathroom and an open closet are tucked away in the left-wing of the house, giving you peace, privacy, and view to the best view of the open lot. This contemporary house also includes second and third bedrooms that can be easily transformed into an additional home office or a hobby room.

House plan design

Customize This House

If you like this house, but feel like few changes would make it perfect, we can customize this house according to your needs. We can easily add an extra bedroom, expand or narrow the house, reverse the plan or even add a whole floor.

View Customized House Plans Examples Customization Pricing Guide

Describe Your Customizations

    Sign me up to Newsletter

    Blueprints That You Get

    Construction Notes

    Foundation Plan

    Slab or Crawl | On request - Basement, Pier & Beam.
    House foundation design showing foundation layout with structural elements.

    Plumbing Plan

    Shows the layout of plumbing fixtures with specifications.

    Floor Plan

    Indicates house layout with dimensioned walls, doors, windows, etc.

    Roof Construction Plan

    Shows roof layout and structural specifications.

    Roof Plan

    Dimensioned roof layout indicating slopes, roof areas and decorative elements.

    Sections

    Cut through the building showing detailed floor, wall, and roof construction elements with specifications

    Plot Plan (+$100)

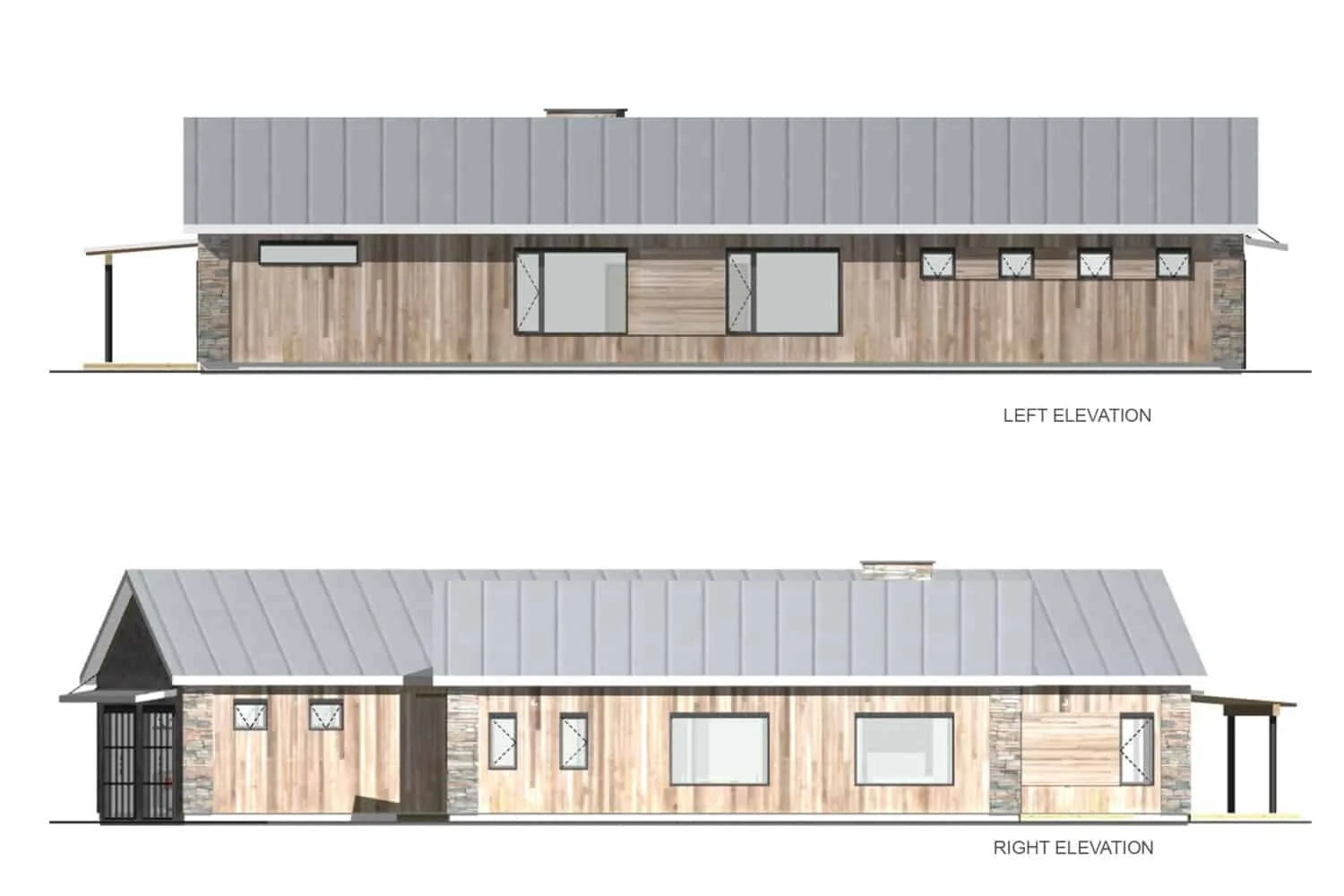

    Elevations
